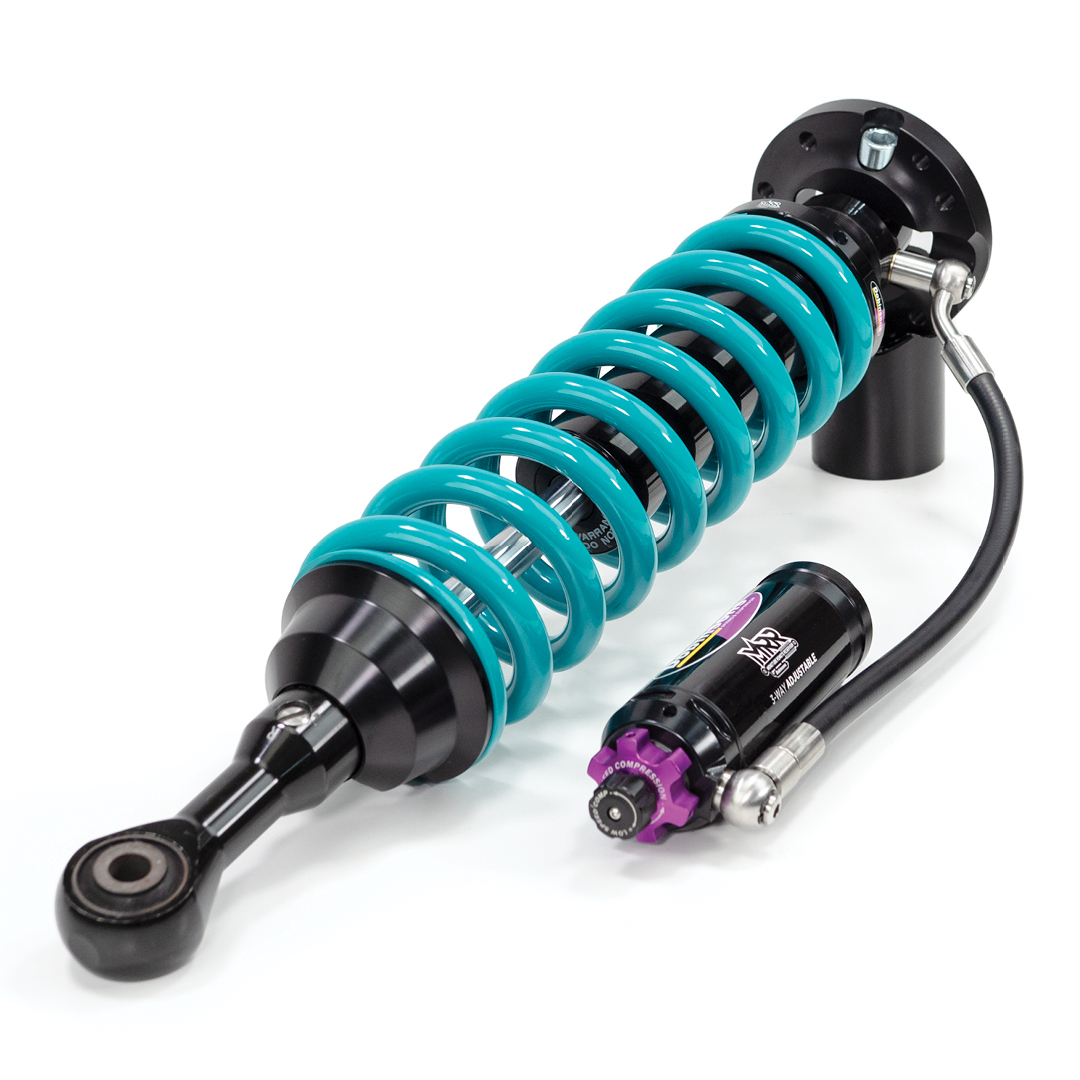

Dobinsons Mrr 3 Way Adjustable Monotube Reservoir Strut 2.6″ (inverted Style) – Mra59-a710

Description

Lift Height
Constant Load
Pre Load Setting

50mm – 2.0″
0-85lb Load
90mm

50mm – 2.0″
220-440lb Load
100mm

70mm – 2.75″
220-440lb Load
110mm

75mm – 3.0″
0-85lb Load
103mm

75mm – 3.0″
110-175lb Load
110mm

• Vehicle Fitment
  • Toyota Tundra 2007-2021
  • Toyota Sequoia 2008-2022

• Coil Springs are NOT included unless selected and purchased
• 16″ coils with a 3″ inner diameter are compatible with these struts

• C92-3016650 Specs
  • Inner Diameter – 3.0″
  • Length – 16″
  • Spring Rate – 650lb/in

• 3-way Adjustable shocks provide maximum adjustability to provide the perfect ride quality for you.
• 10 Stage High Speed Compression – For aggressive, high speed off roading through ruts and holes.
• 20 Stage Low Speed Compression – For creepy crawling and cornering
• 15 Stage Rebound – Control your coils, prevent bucking
• 60mm CNC Machined High Flow Billet Aluminium Race Piston
• 66mm / 2.6″ Bodies
• 3mm Thick Heavy Duty DOM Seamless 66mm O.D. shock Body Precision Honed to +/- 0.04mm
• Upgraded 3 Stage FKM€?HNBR Sealing System
• TSUGAMITM CNC machined components for precise tolerances
• ParkerTM Braided High Pressure Hoses
• 5140 HV900 Hard Chrome Plated, Heat treated 18mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
• T6 6061 Height Adjustable Spring Seat
• Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low€?wear performance
• 60mm Full 6063 aluminum remote reservoir
• Lightweight CNC Machined Low Friction floating piston
• High Quality O.E.M. Grade Natural Rubber Bushings
• Single Piece Lower Leg
• EDP Surface Protection
• Direct Bolt-On Design
• CNC TIG Precision Welded Body End Mounts
• Fully Rebuildable Design
• MRA59-A710

MRA59-A710 Instructions
