THE 1HD DIESEL FAMILY
Toyota's legendary inline-six diesel — three variants, one bloodline. We source, rebuild, and install every one of them.
The Benchmark For Land Cruiser Diesel Power
The Toyota 1HD engine family is a 4.2L inline-six diesel that defined the 80 Series and 100 Series Land Cruiser. Known for near-indestructible reliability, massive torque, and decades of proven performance in the most demanding conditions on earth — these engines are why Land Cruisers are trusted from the Australian outback to the African continent.
At Land Cruiser Heaven, the 1HD family is our specialty. We source low-mileage cores, perform full teardown inspections, and rebuild each engine to exacting standards before it goes into a customer vehicle.
Three Variants. One Family.
Each variant shares the same core architecture but offers a different performance and fitment profile. Understanding the differences is the first step to choosing the right engine for your build.

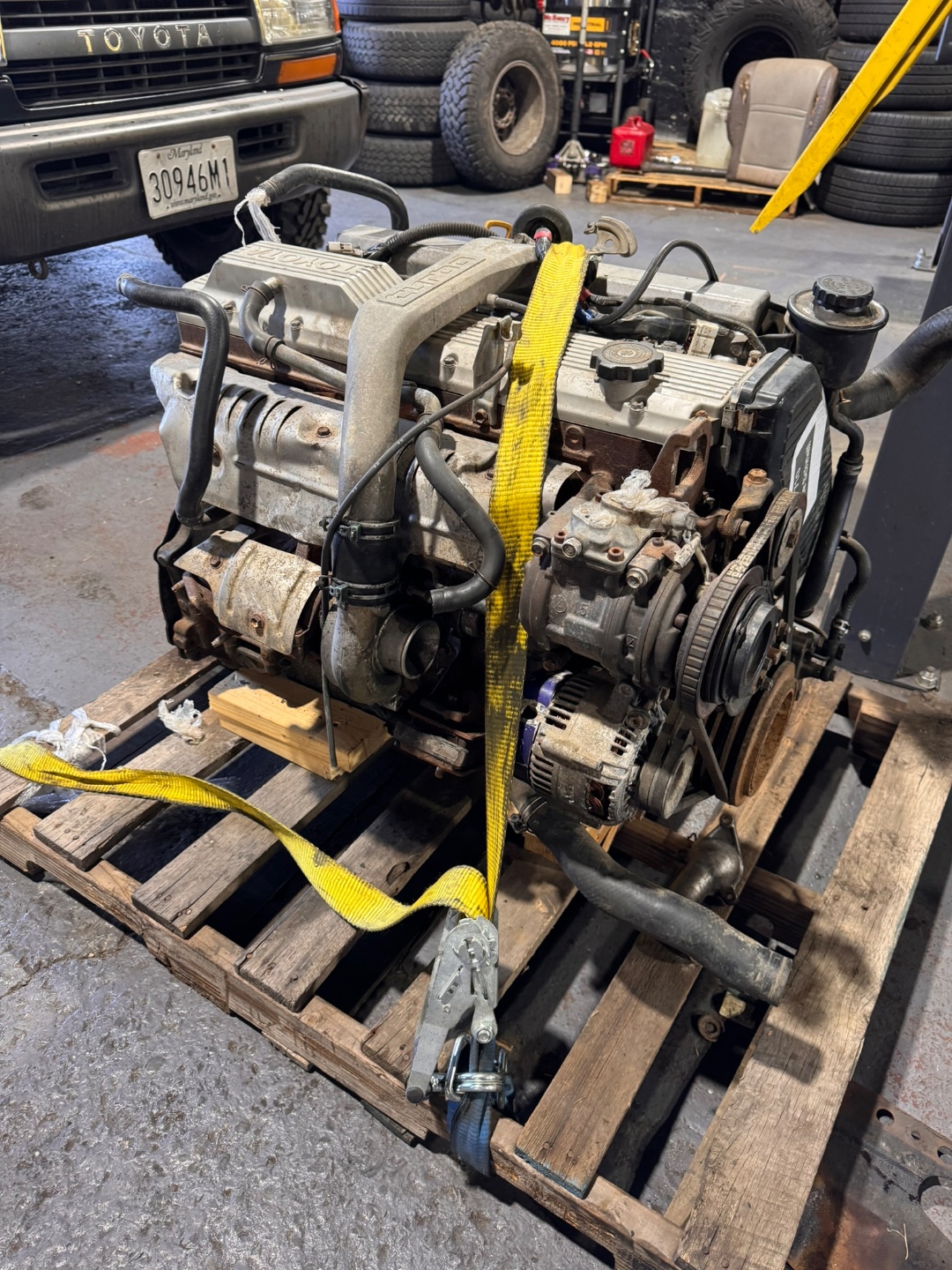

1HD-T
The original turbocharged 1HD. 12-valve head, mechanical injection, bulletproof simplicity. The engine that made the 80 Series famous worldwide.
1HD-FT
The upgraded 24-valve head brings significantly improved breathing and power over the 1HD-T, while retaining mechanical injection for ultimate reliability.

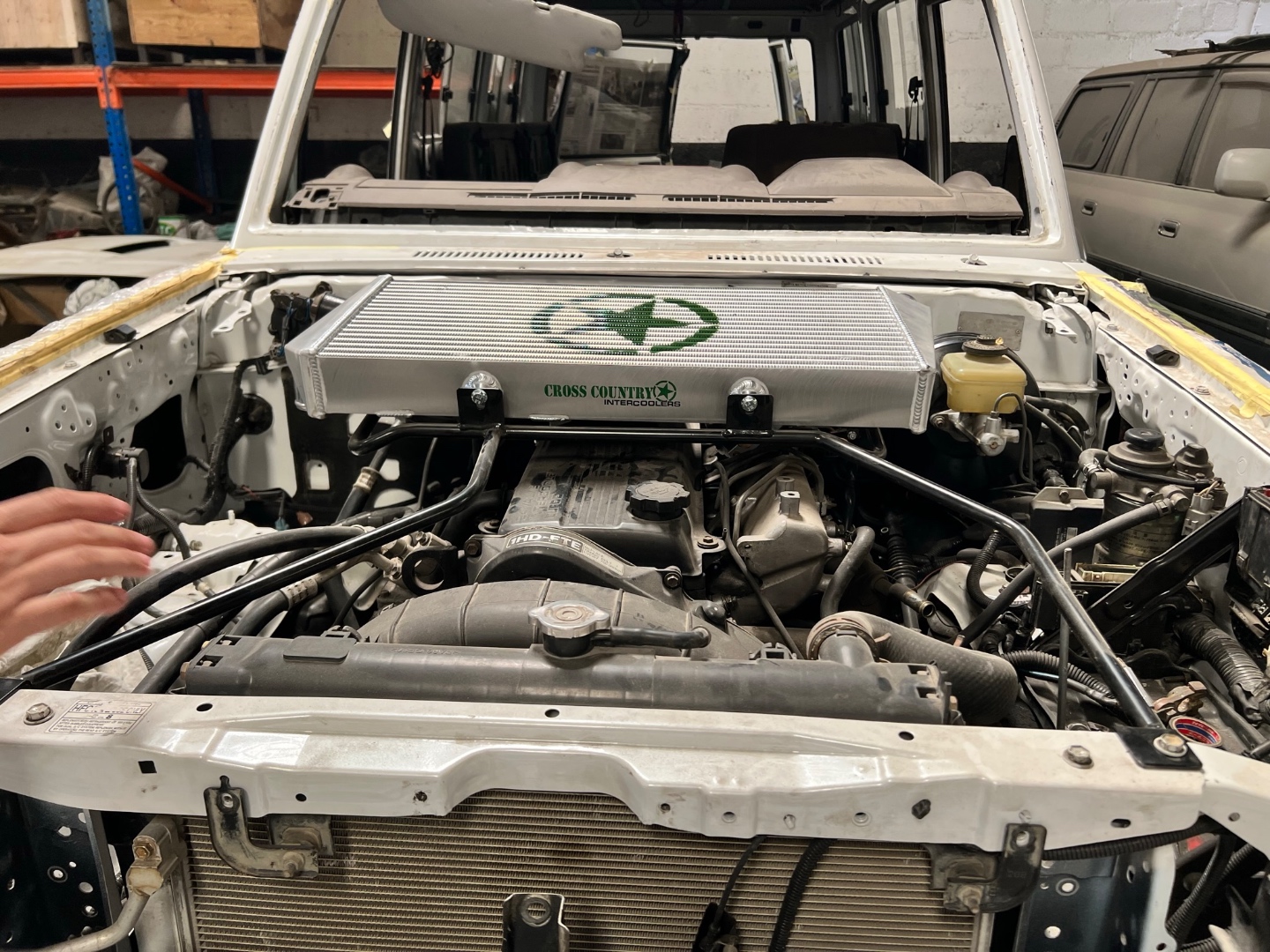

1HD-FTE
The most powerful 1HD variant. Electronic fuel injection and intercooling (on 100 Series) push output significantly higher. Also found non-intercooled in the 79 Series.
Which Engine Is Right For You?
| 1HD-T | 1HD-FT | 1HD-FTE | |
|---|---|---|---|
| Valves | 12 | 24 | 24 |
| Injection | Mechanical Turbo | Mechanical Injection | Electronic EFI |
| Intercooled | No | No | Yes (100 Series) |
| Power | ~130 hp | ~170 hp | ~204 hp |
| Torque | ~300 Nm | ~380 Nm | ~430 Nm |
| Application | 80 Series | 80 Series | 100 Series / 79 Series |
| Production Years | 1990–1997 | 1992–1998 | 1998–2007 |
| Complexity | Low | Low–Medium | Medium |
Not Sure Which Engine You Need?
Talk to our team. We've done hundreds of 1HD swaps and conversions — we'll point you to the right engine for your vehicle and budget.
